COX PowerFlow Quart Single-Component 32 oz Manual Cartridge Gun

Manual Quart Caulk Gun for Adhesives & Sealants

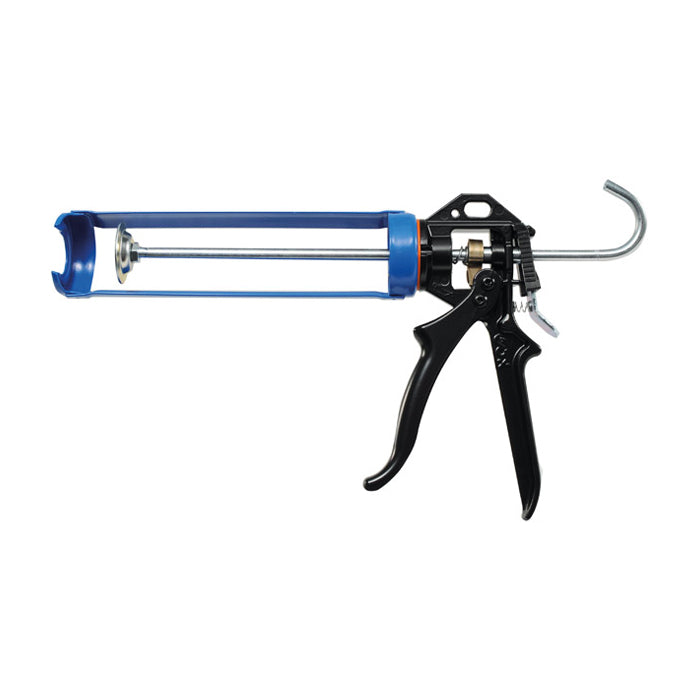

The COX PowerFlow Quart is a one-component manual caulk gun designed for 32 oz (946 mL) quart cartridges. Built for dispensing low- to medium-viscosity adhesives and sealants, it combines an epoxy-coated cast aluminum handle and steel cradle with a switchable Pressure Relief Device (PRD) that helps prevent material run-on.

COX PowerFlow Quart Cartridge Gun Features & Benefits

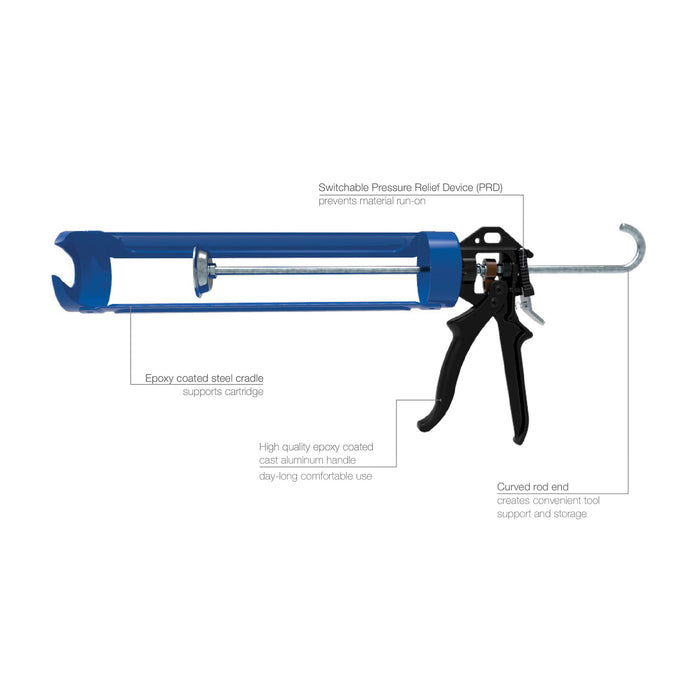

• Controlled Dispensing: A switchable Pressure Relief Device (PRD) helps prevent material run-on when engaged.
• Durable Handle: The epoxy-coated cast aluminum handle is designed for comfortable, day-long use.
• Secure Cartridge Support: An epoxy-coated steel cradle supports the cartridge during dispensing.
• Comfortable Operation: The contoured handle and trigger provide a comfortable grip for easier use.
• Convenient Storage: The curved rod end provides a simple way to support and store the applicator.

Specifications

• Brand: COX
• Model: PowerFlow Quart Cartridge
• Tool Type: One-Component Manual Cartridge Applicator
• Cartridge Capacity: 32 oz (946 mL) quart
• Maximum Thrust: 2.5 kN
• Mechanical Advantage Ratio: 12:1
• Pressure Relief Device: Yes, switchable
• Handle Material: Epoxy-Coated Cast Aluminum
• Frame Material: Epoxy-Coated Steel
• Frame Style: Cradle
• Frame Length: 10.78 in (274 mm)
• Nozzle Diameter: 1.5 in (38 mm)

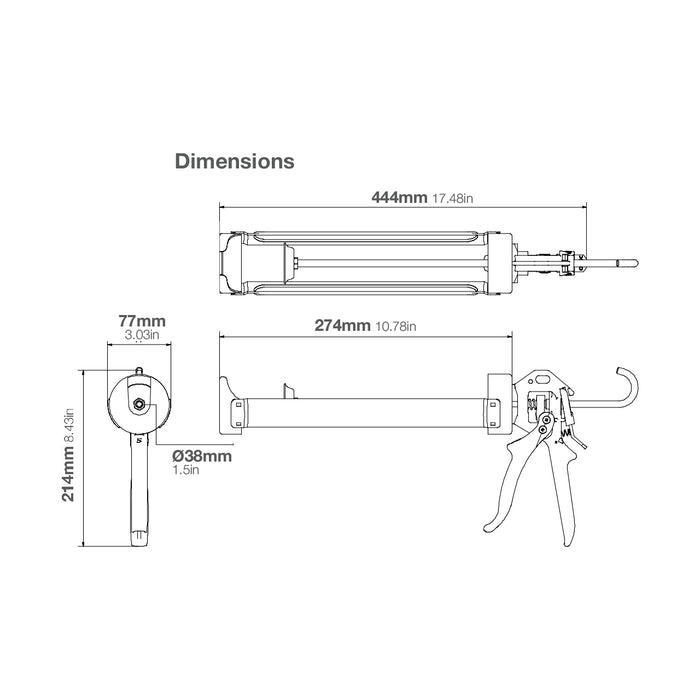

• Overall Dimensions: 17.48 × 8.43 × 3.03 in (444 × 214 × 77 mm)
• Weight: 1.7 lbs (0.79 kg)
• Color: Blue/Black
• Tool Component Approval: REACH

Compatible Cartridges

Designed for one-component 32 oz (946 mL) quart cartridges measuring approximately 10.2 in (258 mm) long and 1.97 in (50 mm) in diameter.
