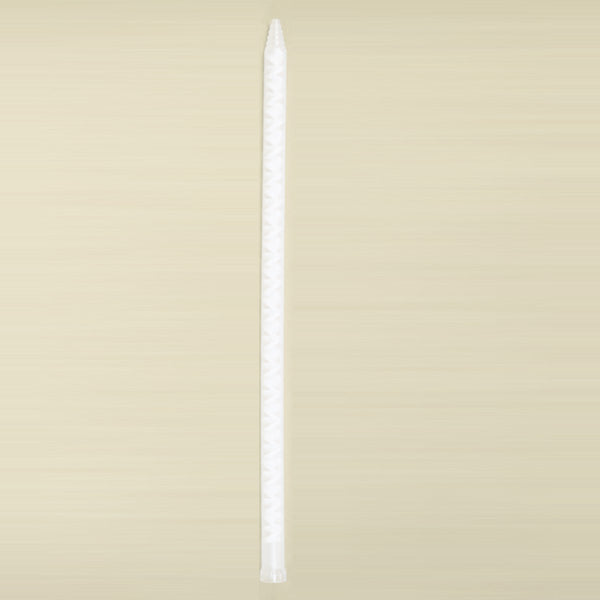

  • Infinity Bond 161-224 disposable static mixer nozzle

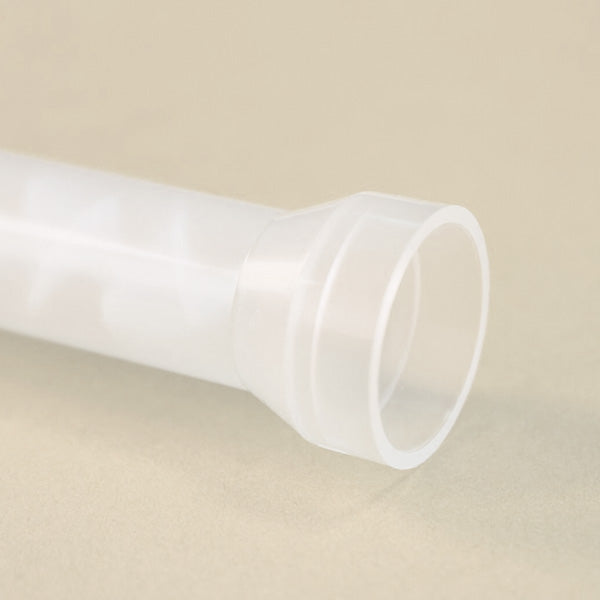

  • Static mixer bell attachment

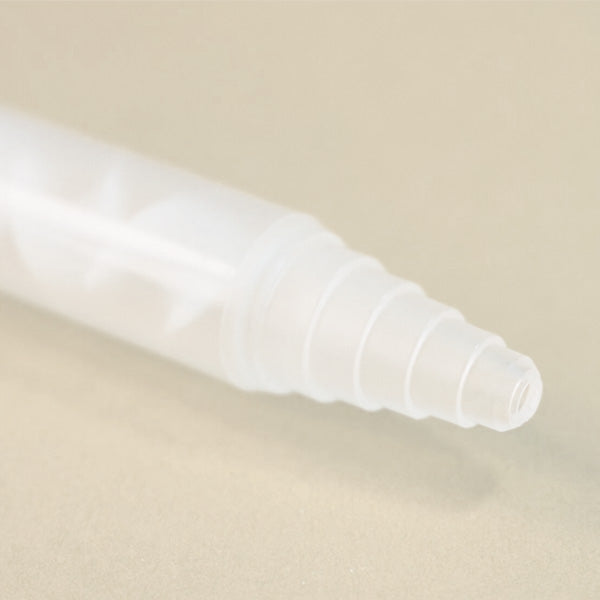

  • Static mixer nozzle with stepped tip

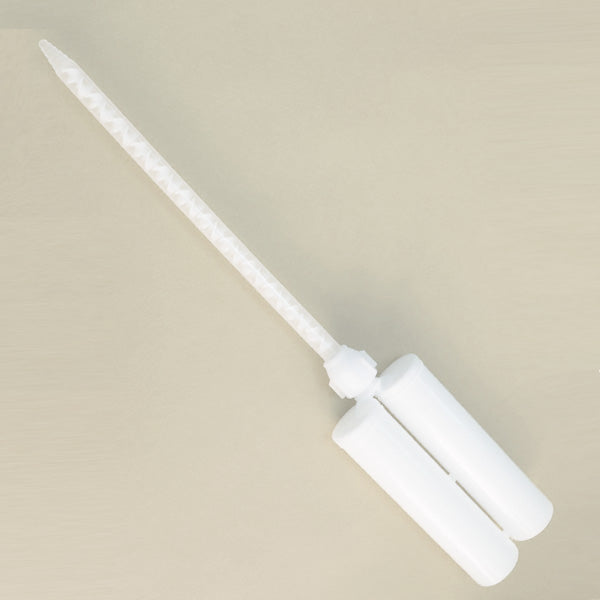

  • Complete dispensing system with 161-224 static mix nozzle
  • Infinity Bond 161-224 static mixer with bell inlet and stepped tip, featuring 24 elements for 1:1 and 2:1 adhesives in 200, 400, or 600ml cartridges or meter mix systems.
  • Infinity Bond 161-224 disposable static mixer nozzle
  • Static mixer bell attachment
  • Static mixer nozzle with stepped tip
  • Complete dispensing system with 161-224 static mix nozzle
Infinity Bond 161-224 Disposable Static Mixer Nozzle

Infinity Bond 161-224 Disposable Static Mixer Nozzle

$73.83
$73.83 $107.00
Choose Quantity

Infinity Bond 161-224 Spiral Static Mixer Nozzle – Bell Connection, 24 Elements

The Infinity Bond 161-224 is a spiral static mixing nozzle featuring a durable bell connection, 24 high-performance elements, and a total length of 11.54 in (292.58 mm) for reliable adhesive blending. Designed for 1:1 and 2:1 ratio dispensing from 200 ml, 400 ml, and 600 ml cartridges, it’s also compatible with Meter Mix Dispense (MMD) equipment. The stepped tip can be trimmed for adjustable bead sizes, making this nozzle ideal for MMAs, epoxies, polyurethanes, and silicones. It is a suitable alternative to the Nordson 7701010 (TAH 161-224), offering consistent performance at a lower cost.

161-224 Mixer Nozzle Performance Highlights

  • Reliable Spiral Mixing: 24 precision-formed elements deliver thorough mixing for accurate 1:1 and 2:1 adhesive dispensing.
  • Extended 11.54 in Length: Provides greater reach and mixing stability for manual and automated applications.
  • Wide Compatibility: Designed for use with 200 ml, 400 ml, and 600 ml cartridges, as well as Meter Mix Dispense (MMD) equipment.
  • Bell Housing Attachment: Standard bell-style connection works with common 7/8-9 or 7/8-14 retaining nuts.
  • Stepped Outlet Tip: Allows users to cut the tip to control bead diameter for application flexibility.
  • Durable Construction: Built from polypropylene and high-strength polyacetal for chemical resistance and long-term performance.

Technical Specifications

  • Part Number: 161-224
  • Mixer Type: Helix
  • Connection Type: Bell
  • Outlet Tip: Stepped
  • Compatible Cartridge Sizes: 200, 400, 600 ml
  • Mix Ratios: 1:1 and 2:1
  • Number of Elements: 24
  • Inner Diameter: 0.500 in / 12.70 mm
  • Outer Diameter: 0.658 in / 16.71 mm
  • Length: 11.54 in / 292.58 mm
  • Outlet Orifice Diameter: 0.157 in / 4.00 mm
  • Approx. Retained Volume: 4.2 ml
  • Housing Material: Polypropylene
  • Element Material: Polyacetal
  • System: C-System Cartridges and Meter Mix Equipment
  • Used With: Two-Part Epoxies, Polyurethanes, Silicones, and Methyl Methacrylates (MMA) and More

Comparable Infinity Bond 161-224 Disposable Mixer

  • Nordson 7701010 (TAH 161-224)
